John Deere DT80-87S

Generators powered by John Deere

John Deere has an unparalleled track record for providing reliable, robust and efficient Engines that won’t let you down, even in the most extreme conditions. You can depend on a John Deere engine for uninterrupted performance, durability and unbeatable fuel economy. These engines are built tough, for our harsh ambient conditions.

Genset Model No.: DT80 (Close Type)
3Phases, 60Hz,220v/380v, 1800rpm
Standby power: 87 Kva/ 69.6 Kw.
Prime power: 79 Kva/ 63.2 Kw.
Includes:
Engine: John Deere , 4045TF158, 4 Cylinders (EU Origin).
Alternator: Leroy Somer TAL044B (EU Origin)
Controlled by: DSE Control Panel (UK Origin)
Sound proof Canopy, Daily tank, Batterie, Emergency Push Button.

blank
blank

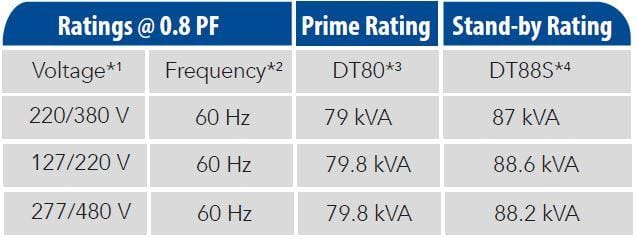

The above ratings represent the generating set capability guaranteed within ±3% at the reference conditions equivalent to those specified in ISO 8528/1 standard.

Notes:

1. The applicable voltage range is 220V, 380V to 480V for 60Hz applications. For other voltages, please consult the factory.
2. This generating set is of a fixed speed of 1800 rpm.
3.DT80 is the prime power rating of the generating set is where a variable load and unlimited hour usage are applied with an average load factor of 80% of the prime rating over each 24-hour period. Noting that a 10% overload is permitted for 1 hour in every 12-hour operation.
4.DT88S is the standby power rating of the generating set is where a variable load limited to an annual usage up to 500 hours is applied, with 300 hours of which may be continuous running. Noting that no overload is permitted.

blank

Engine Technical Data

Make & Model / GSPU

JOHN DEERE 4045TF120 / 4045TF158

Cylinders & Arrangement

4; vertical in-line

Bore & Stroke (mm)

106 x 127 mm

Induction system

Turbo Charged

Combustion

Direct injection

Cycle

4 stroke

Compression ratio

17.0:1

Cooling System

Water-cooled

Displacement

4.5 liters

Lube oil capacity

12 liters Max

Coolant capacity

8 liters

Standard governor (Optional)

Mechanical (Electronic)

Engine Speed

1800 rpm

Fuel & Oil Consumption

Fuel Cons.

Oil Cons.

Consumption @ 100% Load (L/H)

18.5

0.049

Consumption @ 75% Load (L/H)

14.5

0.038

Consumption @ 50% Load (L/H)

10.0

0.026

Consumption @ 25% Load (L/H)

6.0

0.016

Radiator Cooling Air Flow (m3/s)

2.5

Emissions regulations

For non-regulated territories

Exhaust temperature ᵒC (max)

501

Max exhaust gas flow (m3/min)

14.5

Max. allowed back pressure (kPa)

7.5

The above performance data are valid as per the following specs:

  • Diesel Fuel is according to BS2869 Class A2 or equivalent.

  • Lubricating oil is according to Grade SAE 15W-40 API CI4.

  • The coolant should be 50% antifreeze and 50% freshwater.

Alternator Technical Data

Make & Model

Leroy Somer TAL044B

Frequency / No. of poles

60Hz / 4P

Ingress protection

IP23

Insulation class

H

Terminals (Optional)

6 (12)

Excitation system

SHUNT

Winding pitch

2/3

AVR model

R120

Overspeed

2250 R.P.M.

Voltage regulation

± 1 %

Coolant airflow

0.3 m3/s

Certification

  • The complete generating set is type-tested according to ISO 8528-8 standard.

Control Panel Specifications

GMP260MKIII (DSE6110 MKIII) panel is an automaticblank
start generating set panel of microprocessor-based
the design which is capable of interfacing with
the electronic engines through the can-bus J1939. It is
fully configurable by PC software, yet most settings
can be programmed by front fascia buttons. If
Mains voltage is to be monitored, DSE6120MKIII
can be offered.
Circuit Breaker Schneider or ABB, 3 Pole MCB (4
Pole available as Optional)

Construction

Sheet Fabrication

CNC shearing & bending

Paint type

Heat-treated powder-coated

Paint application

Electrostatic corona spraying

Durability tests

  • IMPACT [EN ISO 6272]
  • Salt spray resistance [ASTM B117-73]
  • Humidity Resistance [ASTM D2247]

Compliance

  • The panel is compliant with [ISO8528-8]

  • Clearance & Creepage [IEC60355-1]

  • Leakage current & Dielectric strength [IEC60355-1]

  • Protection against electric shock [IEC600 364-4-41]

Degree of protection

IP55

Wire crimping

  • Crimping force up to 20KN

  • Accuracy of 0.01mm

  • Each crimping is checked by Komax CFA+

Wire coding

  • Wires are coded by wire color and cross-section

  • Wires are coded by printed numbers

  • Wires are coded by the printed function of the wire



Protection (standard) (OPTIONAL Note 1,3) Control (standard) (OPTIONAL  Note 1) Instrumentation (standard) (OPTIONAL Note 1,3)
Over /Under AC Voltage High Oil Temperature Remote Start Input Battery Charger: 5A, 10A, UL Gen AC Voltage: 3ph VLL & VLN Lube Oil Temperature
Over /Under Frequency High Exhaust Temperature Emergency Stop Button Fuel Pump Control Gen Frequency: Hz Exhaust Temperature
Delayed Over Current Low Fuel Pressure Common Alarm Volt-Free Contact Extension: Gen Current: 3 phase A Engine Inlet air (Boost) pressure
Short-circuit Low Coolant Pressure Event Log (100 Events) Ethernet-Modbus TCP Power: KW, KVA, KVAR & PF Charging Ammeter
Over KW Low Fuel Level Weekly Exerciser RS485-  Modbus RTU Energy: KWhr, KVAhr, KVARhr Fuel pressure
High Engine Temperature Low Oil Level Audible Alarm GPS Tracker Lube Oil Pressure Coolant Pressure
Low Oil Pressure High winding temperature Standard CANbus J1939 Water in Fuel Detection Engine Coolant Temperature Fuel level
Maintenance Alarm High Bearing Temperature Pre/Post Heat Control Website Applications Battery DC Voltage Lube Oil Level
High/Low Battery Voltage Low Boost Pressure Data Logging SNMP Gateway DC Alternator Winding temperature 3xRTD
Low coolant level (Note 2) Fusible Link Fire Protection PLC Editor Inputs: 20mA, 10V Engine Speed Bearing Temperature RTD
3 ph Mains Sensing (6120) Low Coolant Temperature Oil Level Control Thermocouples Operating Hours Tier 4 Support
Note 1: some OPTIONAL features could be standard if CANbus is established within electronic engines.
Note 2: Low coolant level protection is a standard feature for Gensets above 200KVA, otherwise it is optional.
Note 3: There is a limitation in the number of protections and measurements that can be offered with GMP260MK.
Other types of control Panels & Modules can be offered according to required specifications (DSE 7310/20, 7410/20, 8610, 8810, and Others).

Genset Standard Features

Assembly:

Gensets are assembled in Saudi Arabia in compliance with ISO 8528 standard.

Fabrication:

– The engine/alternator assembly rests on skid with Anti-vibration mounting pads.

– The skid is made up of durable sheet metals and beams exceeding “Vibration & Torsion” Resistance Norms.

– A skid-mounted fuel tank is supplied with fuel gauge, filler cap, fuel inlet, and outlet hoses.

– The control panel enclosure is made up of reliable metal sheets.

Paint:

-The skid and control panel enclosure is painted with heat-treated and power-coated electrostatic corona spraying.

– Paints passed durability tests conforming to international quality standards.

– Impact (EN ISO 6272)

– Salt Spray Resistance (ASTM B117-73)

– Humidity Resistance (ASTM D2247)

Works-Testing:

– All Gensets are tested prior to dispatch.

– The test is automatically generated and checked according to ISO8528

– A test certificate is issued for each Genset

Equipment:

– Water-cooled Radiator with a belt-driven blower fan and full guarding

– Electric starter with solenoid Relay

– Battery Charging Alternator

– Energized to run solenoid

– Replaceable fuel, oil, and air filters

– Heavy-duty leads acid battery with matching capacity (Amps & CCA)

– One loose supplied industrial exhaust silencer – 16 DB noise reduction level.

– Integral Fuel Tank with 117 L capacity.

Documentation:

– User Manual for Operation, Installation and Maintenance guidance

– Wiring Diagram.

– Test Report

– Maintenance Schedule

– Catalogs for Engine, Alternator & AVR

Genset Optional Features

Manual & Automatic Transfer Switches,

Synchronizing & Totalizing Panels

Fuel water separator

Water jacket heater

Oil heater

Fuel heater

Battery heater

Anti-condensation heater

Air Shut-off Valve

Oil Sampler

Pre-lube Oil Pump
